Efficient Overhead Monorail Conveyor System for Painting Lines
Overview
The Overhead Monorail Conveyor System is a state-of-the-art solution tailored for high-performance painting and coating applications. Built to handle demanding industrial environments, this system combines robust construction with intelligent automation to streamline workflows, improve finish quality, and adapt to diverse production requirements.
Key Features
1．Precision Handling
-Smooth, programmable transport of workpieces (up to 1,000 kg capacity) through all stages of the painting process.
-Adjustable speed control (0.5–5 m/min) ensures optimal dwell times for coating uniformity.
2．Modular & Scalable Design
-Customizable layouts to fit facility dimensions and production volumes.
-Expandable tracks and easy integration with existing equipment.
3．Durable Construction
-Corrosion-resistant materials (stainless steel or powder-coated alloys) withstand harsh chemicals and high temperatures (up to 200°C).
-Low-maintenance components reduce lifecycle costs.
4．Automation & Control
-PLC-based control system with HMI interface for real-time monitoring and adjustments.
-IoT-ready for predictive maintenance and data-driven optimization.
5．Space Optimization
-Overhead design frees up floor space for safer operations and efficient facility planning.
Technical Specifications
Load Capacity: 100–1,000 kg (customizable)
Speed Range: 0.5–5 m/min (variable frequency drive)
Track Length: Configurable up to 500 meters
Power Supply: 380–480V, 50/60Hz
Environmental Resistance: IP65 rating for dust and moisture protection
Applications
Automotive: Body-in-white painting, e-coating, and final finishes.
Aerospace: Primer and topcoat application for large components.
Furniture: Uniform coating for wood, metal, or composite surfaces.
Industrial Machinery: Corrosion-resistant finishes for heavy equipment.
Why Choose Our System?
Enhanced Efficiency: Reduce cycle times by 20–30% with synchronized automation.
Consistent Quality: Eliminate human error with programmable workflows.
Cost Savings: Lower energy consumption and minimal waste of coatings.
Safety Compliance: Meets safety standards with emergency stop systems and anti-collision sensors.
Warranty & Support
-1-year comprehensive warranty with 24/7 technical support.
-On-site installation, training, and lifetime maintenance plans available

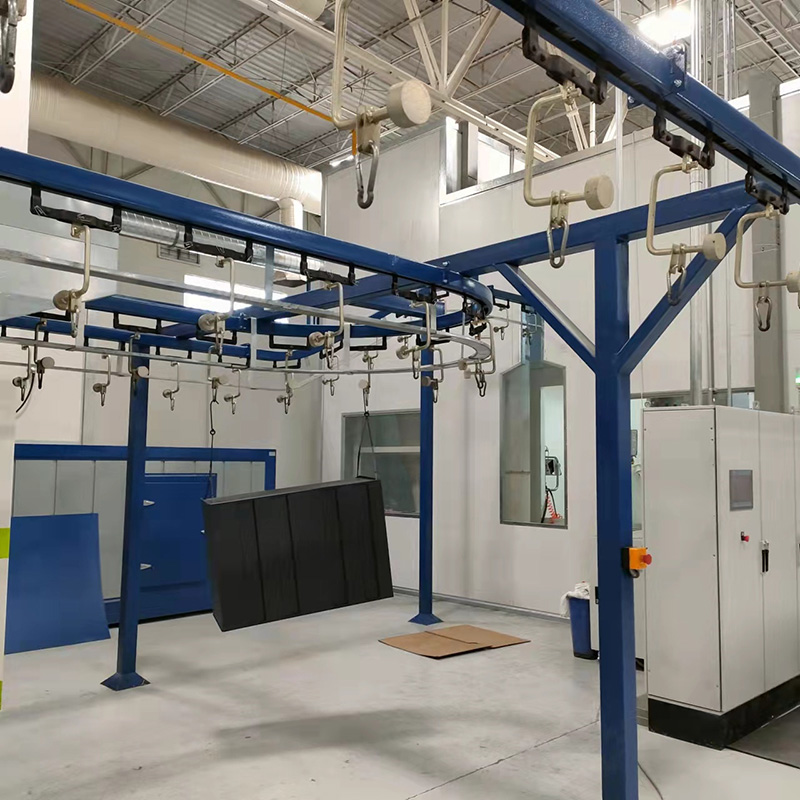

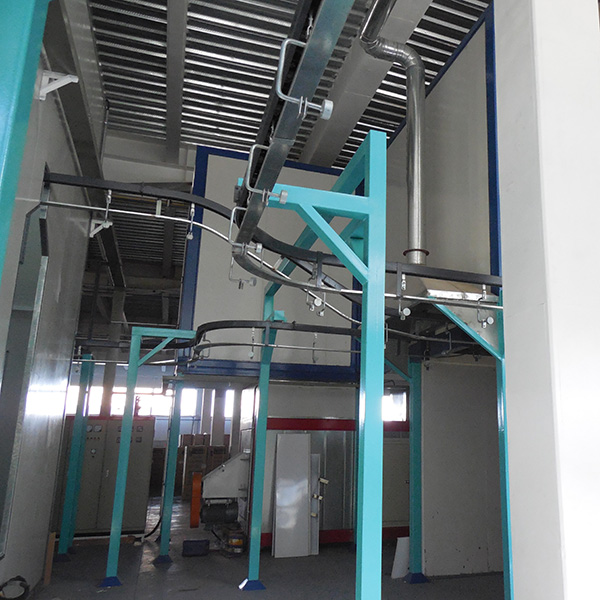

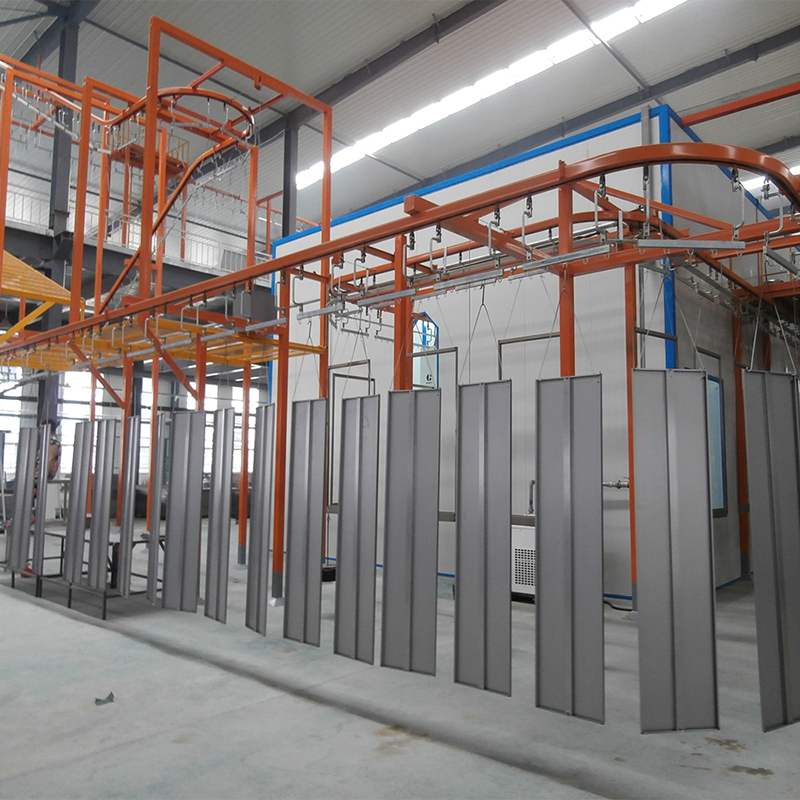

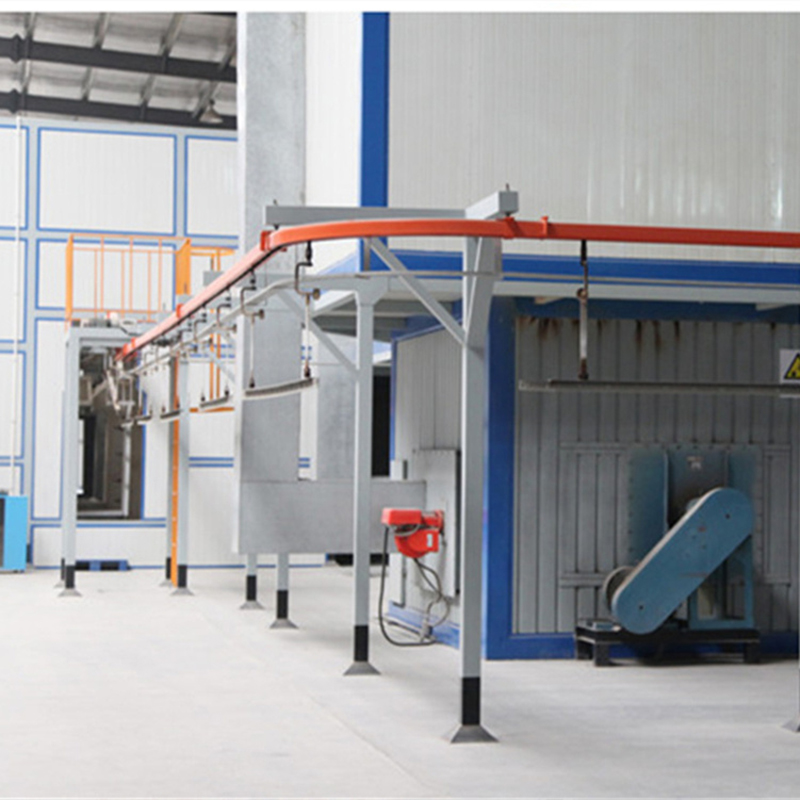

Product Display
Elevate your painting operations with a conveyor system that delivers reliability, precision, and scalability. Contact our team today to design a tailored solution for your facility
